Unique expertise
The Flavy X-Treme filter is recognised on the market for giving the best performance (flow rate, juice recovery rate) regardless of the type of sludge. Clogging control and concentration management in the filtration loop, combined with a gentle (very low pressure), flexible process and a high-performance filtration membrane, ensure stable flow rates throughout your filtration process. You can carry out filtrations lasting almost 20 hours without stopping the machine, without intermediate rinsing, and without regular changes to the process parameters. Everything is managed and controlled by the filter.

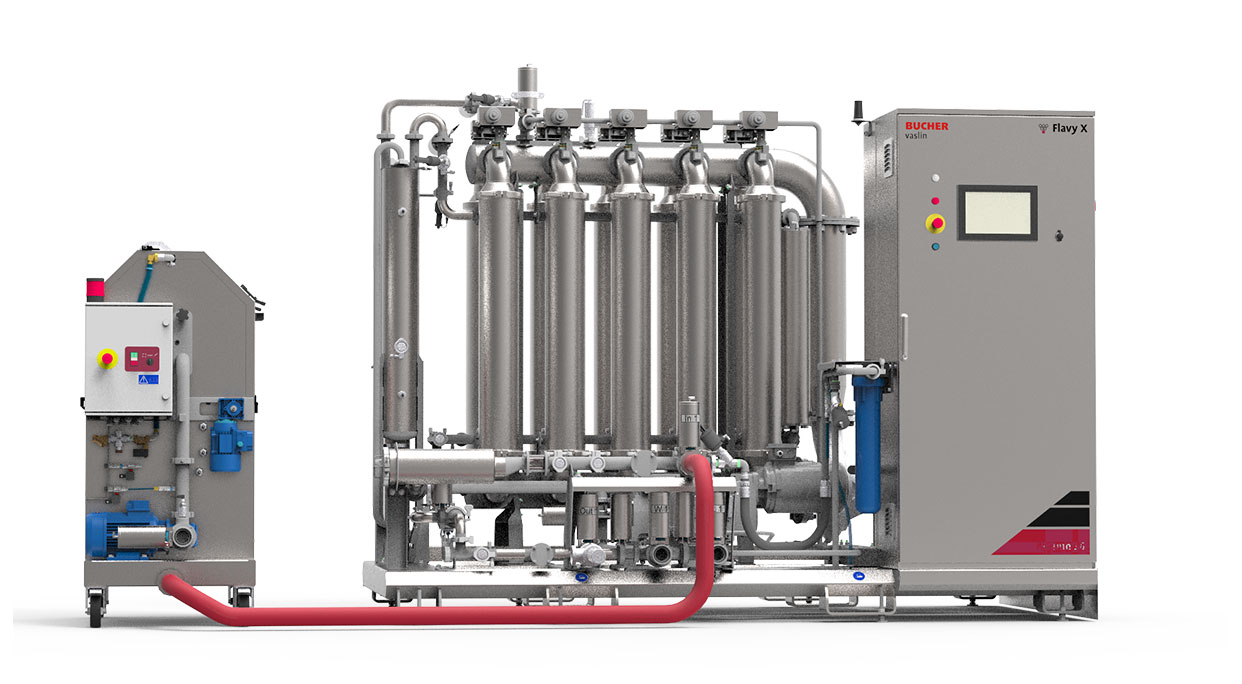

The Flavy X-Treme filter is coupled to the DB pre-filter, which pre-filters the must to eliminate the coarsest parts (debris from skins, stalks, pips or any other particulate elements).
A wide range of applications
The Flavy X-Treme filter is extremely versatile, and is capable of treating sedimentation sludge, flotation sludge and stagnation sludge.
The filter accepts, without constraint, the treatment of mash from juices containing oenological products such as bentonite, activated carbon, PVPP, gelatin, pea protein, etc.
The Flavy X-Treme filter is suitable for filtering all types of wine.
Low environmental impact
The Flavy X-Treme filter stands out for having the lowest water and cleaning product consumption on the market.
The washing water separation option contributes even further to reducing the environmental impact by allowing the last filter rinsing water to be reused for other purposes in the cellar (cleaning vats, floors, etc.).
Finally, the Flavy X-Treme filter, is renowned for its ease of use and rock-solid reliability.
| Technical data | X-Treme 2 | X-Treme 3 | X-Treme 4 | X-Treme 6 | X-Treme 8 | X-Treme 10 |
|---|---|---|---|---|---|---|
| Length (mm) | 2390 | 2390 | 2940 | 2940 | 3310 | 3310 |
| Width (mm) | 1740 | 1740 | 2230 | 2230 | 2380 | 2380 |
| Floor area (m2) | 7 | 7 | 10 | 10 | 11 | 11 |
| Height (mm) | 1980 | 1980 | 2310 | 2310 | 2300 | 2300 |
| Unladen weight (kg) | 740 | 760 | 1360 | 1420 | 1720 | 1780 |
| Supply voltage (V/Hz) | 400 Volts three-phase + Earth (50 Hz) | 400 Volts three-phase + Earth (50 Hz) | 400 Volts three-phase + Earth (50 Hz) | 400 Volts three-phase + Earth (50 Hz) | 400 Volts three-phase + Earth (50 Hz) | 400 Volts three-phase + Earth (50 Hz) |
| Total power (kW) | 10 | 10 | 18 | 14 | 27 | 27 |
Turbidimeter
– On-line measurement of turbidity in filtered wine
Conductivity probe
– Automatic verification that there is no detergent residue after regeneration. Inspection and safety tool required for IFS-BRC type audits.
Selector 2 inlets / 2 outlets
– Enables you to create filtration sequences or assemblies
In-line bentonite injection
– Protein stabilization of white and rosé wines
– Simplifying the wine processing chain
– Fewer cleaning operations for pumps, pipes and winery
– Wine treatment without the use of additives
– Wines available for bottling more quickly
– No more tank bottom management, which can represent 3 to 5% of the volume treated
Injection of oenological products
– Injection of up to 3 oenological products (e.g.: MCR, metatartaric acid, UF bentonite) and 3 at the filter outlet (e.g.: CMC, SO2, gum arabic)
Nitrogen injection
This option makes it possible to control a solenoid valve and a diffuser located after the filter outlet valve.
Wash water filtration
– For water with a fouling index > 3, we recommend installing 3 stages of water filtration (5 µ – 1µ – 0.5 µ) for maximum efficiency of rinsing and washing operations.
Wash water drain valve selection
– Makes it possible to separate washing water from the last filter rinsing water
– Recover this clear water for other uses
– Helps reduce water consumption in the cellar
Sparkling wine
– For wine filtration in closed tanks, up to 7 bars.
Sterilizable tasting tap
– Sterilizable sampling tap suitable for microbiological analysis
Tared valve
– Adjusts back pressure to ensure good quality retrofiltration. To be used, for example, when the receiving tank is located at the bottom of the filter
Wine pre-filter control
100 µm wine prefilter
– For cold wine filtration. Protects the filter from scale crystals.
Adapters
Hot water line draining purge
– When hot water production is far from the filter.
