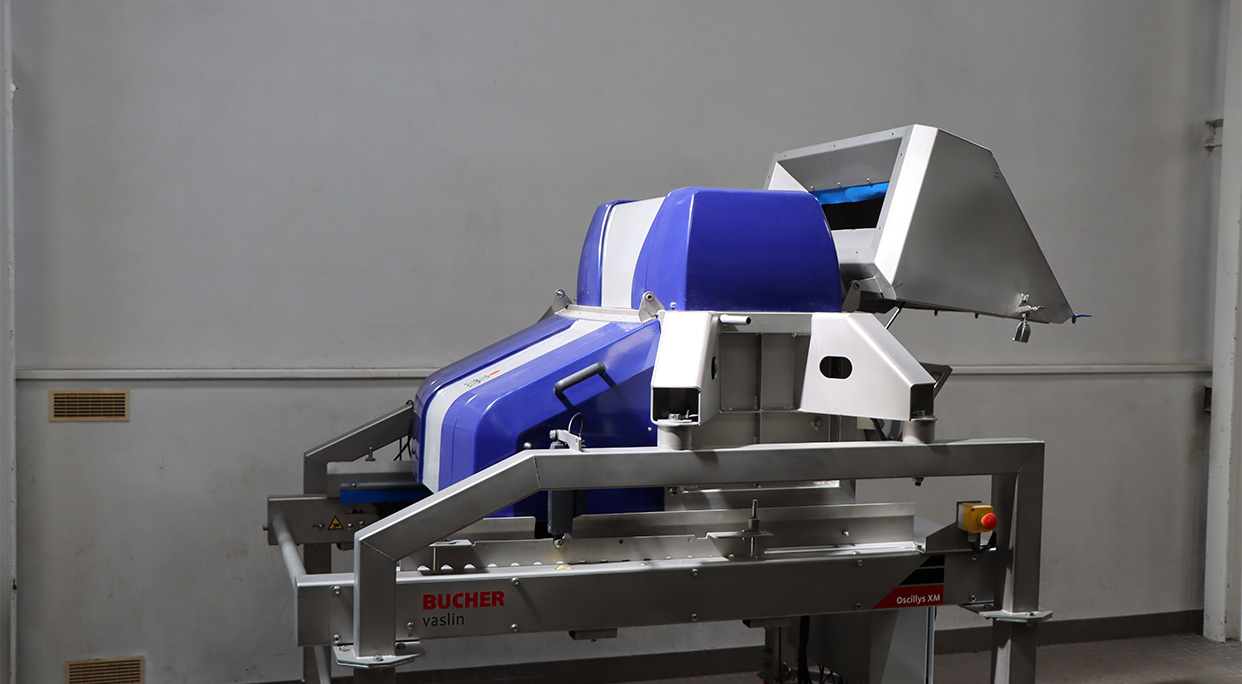

Delta Oscillys XM/XL

Delta Oscillys XM / XL relies on the high amplitude oscillation of a cage to detach the grapes from the stalk by inertia. This new exclusive and patented system for stalk separation works without a thresher, destemming shaft, or rotating cage.
It ensures efficient and high-quality stalk separation while reducing the volumes of juice produced and preserving the condition of the stalk.
The rate of residual plant parts is significantly reduced with Delta Oscillys XM / XL. It achieves a near-zero ratio of 0.2 to 0.5% compared with 2 to 4.5% on a traditional destemmer.

Request information

Advantages
Technical description
Options
Download

Guaranteed efficiency

The Delta Oscillys XM / XL destemmers allow you to have a great destemming capacity with a small footprint. The harvest is sent to a cage by gravity with no mixer or shaft.

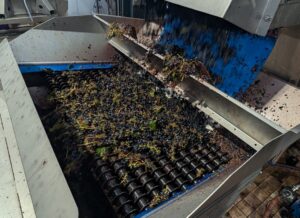

The berries and stems are collected on a roller sorter. The first zone distributes the harvest and separates the juice and the failed grapes. The second zone separates the berries, stalks and plant debris. The wide, pentagonal cage processes the bunches in the centre in a single layer.
The movement of the cage generates a progressive destemming force from the start of the cage. The user can adjust the speed of oscillation, the type of cage, and the spacing and speed of the the rollers depending on the varieties, the condition and the maturity of the harvest.

Easy maintenance

Accessible grease nipples make cleaning quick and easy.

Technical data	Oscillys XM	Oscillys XL	Oscillys XM Max	Oscillys XL Max
Max. flow rate (t/h)*	Up to 15t/h	Up to 25t/h	Up to 22t/h	Up to 40t/h
Total height	1470	1990	1870	2520
"Berry" output height (mm)	500	810	490	1110
Length (mm)	1850	2670	2430	3140
Width (mm)	1550	1170	1700	1770
Length for cover openings (mm)	2070	2780	2430	3140
Height for hopper tipping (mm)	1980	2806	2578	3285
Height for opening front covers (mm)	1810	2490	1810	2490
Weight (kg)	600	1000	850	1150
Installed electrical power	2,05	2,05	2,60	2,60

*As an indication, variable according to grape varieties, the condition and nature of the harvest (manual or machine).

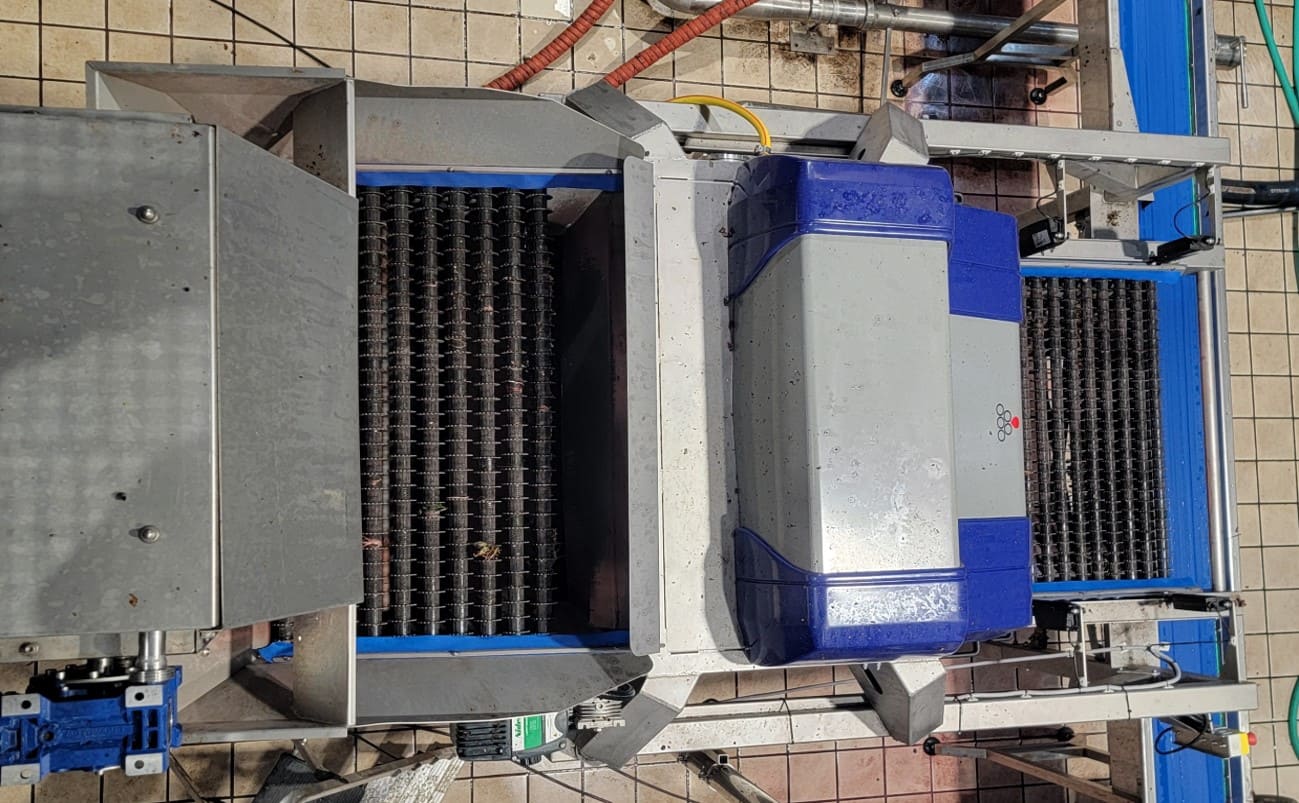

Oscillys XM/XL Max hopper

The Delta Oscillys XM / XL Max is a high-speed destemmer designed for mechanical harvesting, which preserves the integrity of the berries already destemmed and allows the cage to be fed only with the bunches to be destemmed.
