Guaranteed efficiency

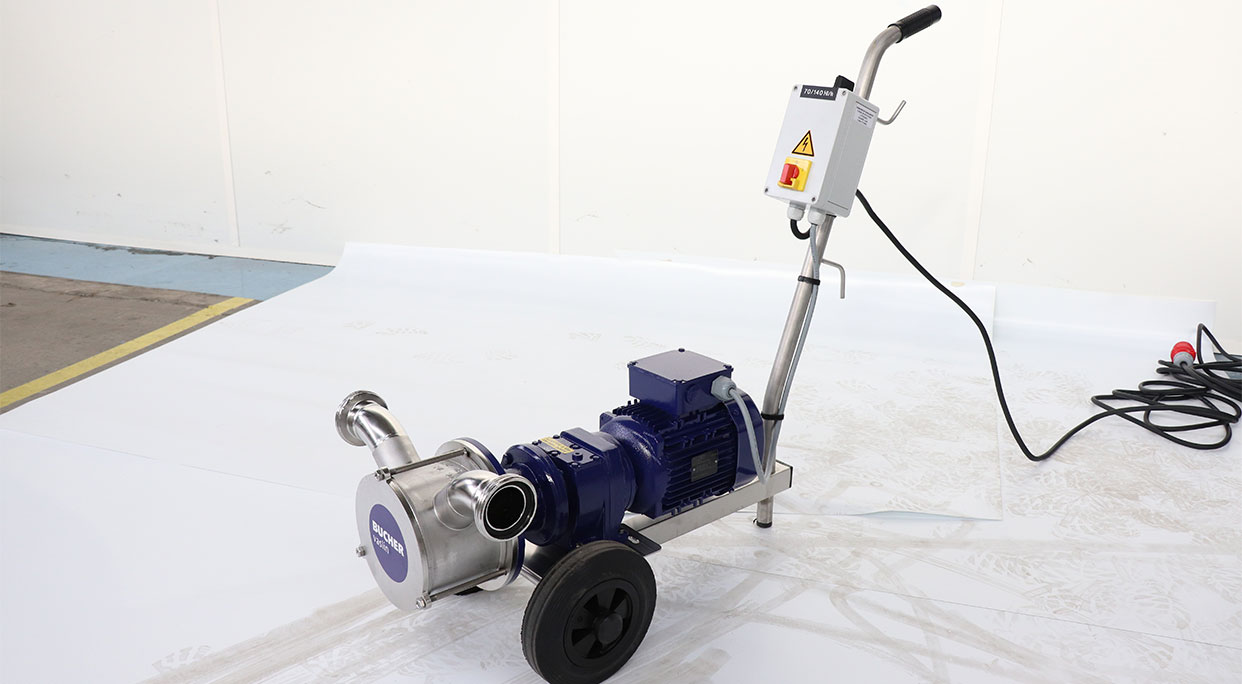

The low rotation speed of the Delta Flex pump means that seeds and pulp are not destroyed. It is reversible and self-priming. This pump can be single-speed, dual-speed or with a frequency converter. Its impellers with flexible blades are made of food-grade neoprene. The Delta Flex pump is used for pumping-over, descaling, filtration, filling and bottling.
| Technical data | Flex 35/70 | Flex 50/100 | Flex 70/140 | Flex 90/180 | Flex 110/220 | Flex 140/280 | Flex 170/340 | Flex 300/600 | FLEX 5/140 Var Elec | FLEX 15/260 Var Elec | FLEX 25/400 Var Elec | FLEX 50/700 Var Elec |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wine capacity (hl/h) | 35 to 70 | 50 to 100 | 70 to 140 | 90 to 180 | 110 to 220 | 140 to 280 | 170 to 340 | 300 to 600 | 5 to 140 | 15 to 240 | 15 to 260 | 50 to 700 |
| Length (mm) | 1018 | 1018 | 1043 | 1043 | 1043 | 1130 | 1127 | 1018 | 1020 | 1134 | 1127 | 1208 |
| Width (mm) | 370 | 370 | 370 | 370 | 370 | 370 | 370 | 440 | 376 | 346 | 346 | 440 |
| Height (mm) | 720.5 | 720.5 | 720.5 | 720.5 | 720.5 | 720.5 | 720.5 | 920 | 721 | 826 | 826 | 910 |
Bypass valve
DIN thread
Electronic pressure switch
Fittings
Radio controls
Pressure regulator
